Art. No.: STSK-VV04NPT06M
List number: 23810040

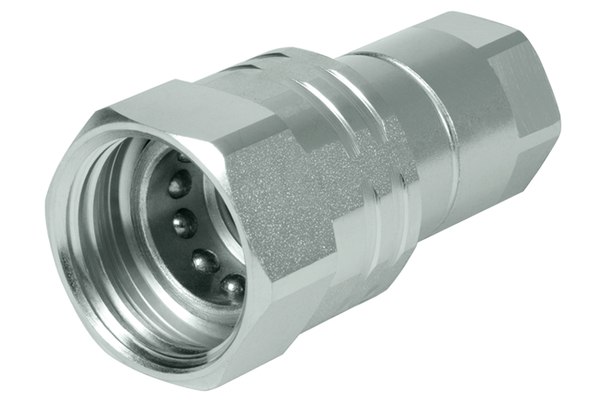

VV series couplings are very robust and reliable and allow to connect under residual pressure. Thanks to a double function sleeve it's also possible to connect a female part with either VV or NV male halves. Faster proprietary profile.
| DN: | 06 |
| Size: | 04 |
| Inch: | 1/4 |
| working pressure [bar]: | 350 |
| Thread + standard: | F NPTF ANSI B1.20.3 |
| Thread [GA]: | G1/4"-19 |
| Outer Ø sleeve [mm]: | 30 |
| Length sleeve [mm]: | 60 |

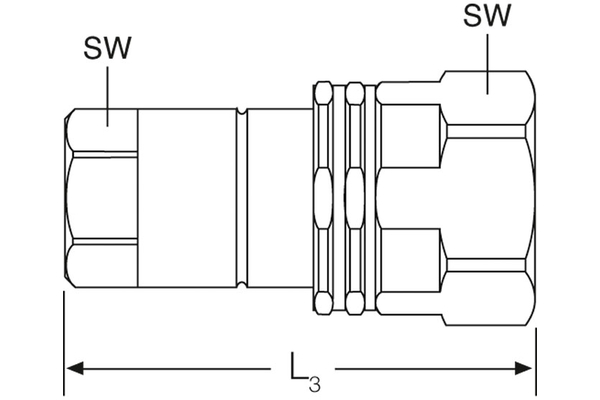

| SW [mm]: | 19 |
| SW2 [mm]: | 27 |
| SW1 [mm]: | 19 |
| SW1 [mm]: | 19 |
| l/min at ΔP=2 bar: | 18 |
| Material support ring: | PTFE |
| Product title long: | Series STSK-VV female coupling |
| Product title short: | female coupling |
| wrong type: | false |
Reserve technical changes.
