Art. No.: STSK-VV16BSP25M
List number: 23810280
VV series couplings are very robust and reliable and allow to connect under residual pressure. Thanks to a double function sleeve it's also possible to connect a female part with either VV or NV male halves. Faster proprietary profile.
| DN: | 25 |
| Size: | 16 |
| Inch: | 1 |
| working pressure [bar]: | 220 |
| Thread + standard: | ISO 1179-1 |
| Thread [GA]: | G1"-11 |

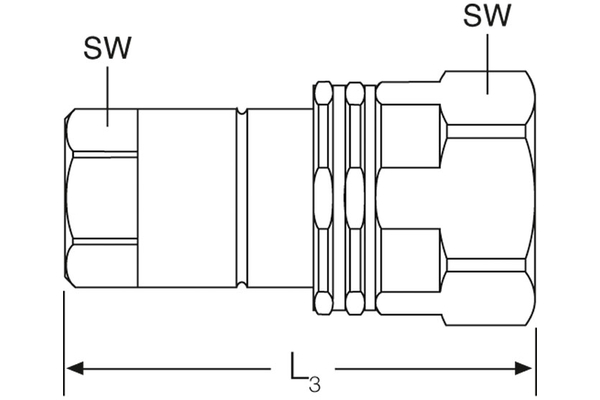

| Outer Ø sleeve [mm]: | 61,5 |
| Length sleeve [mm]: | 124 |
| SW [mm]: | 41 |
| SW2 [mm]: | 55 |
| SW1 [mm]: | 41 |
| SW2 [mm]: | 55 |
| SW1 [mm]: | 41 |
| l/min at ΔP=2 bar: | 140 |
| Product title long: | Series STSK-VV female coupling |
| Product title short: | female coupling |
Reserve technical changes.
