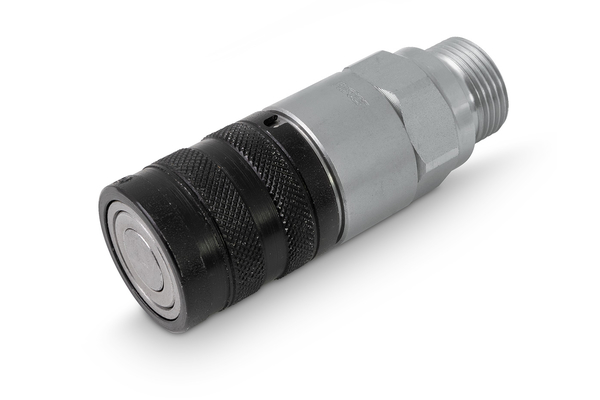

ST-3FF08NMF12M
ST-3FF sleeve

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	350
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1/2

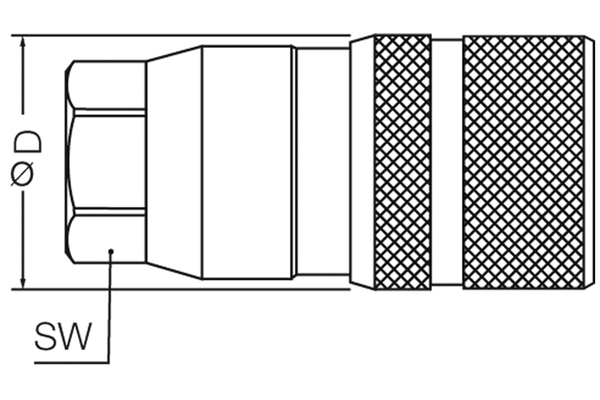

  Outer Ø sleeve [mm]:	38
  Length sleeve [mm]:	81,3
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	95
  wrong type:	false
