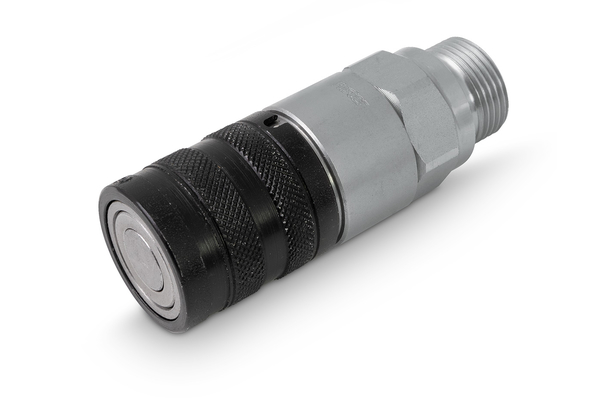

ST-3FF09JM90-12M
Plug-in coupling series ST-3FF (female)

Product info

• Specifications

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	350
  Thread + standard:	JIC (UN) male-thread 90° ISO 8434-2
  Thread [GA]:	9/16

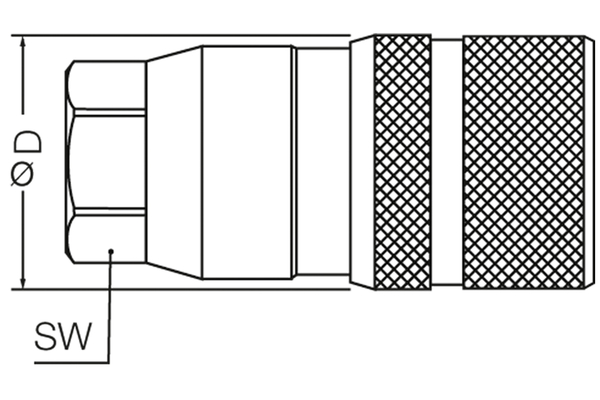

  Outer Ø sleeve [mm]:	38
  Length sleeve [mm]:	100,8
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	95
  Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	PU (AU), PTFE
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Standard:	ISO 16028
  Surface:	Zinc-Nickel
  Temperature range [°C]:	-25°C to +100°C
