ST-3FF14JMS12S
ST-3FF plug

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	350
  Thread + standard:	JIC (UN) bulkhead ISO 8434-2
  Thread [GA]:	7/8

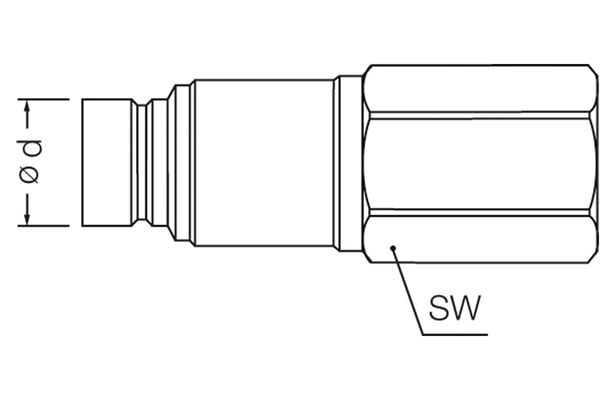

  Outer Ø plug [mm]:	24,5
  Length plug [mm]:	144,3
  Wrench size connection side plug:	34
  l/min at ΔP=2 bar:	65
  wrong type:	false
