ST-FF06BSP10M-VIT
Plug-in coupling series ST-FF Sleeve

Product info

• Specifications

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	350
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/8"

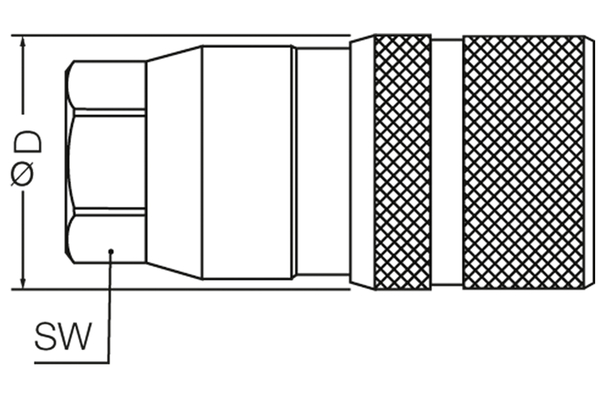

  Outer Ø plug [mm]:	30,0
  Length sleeve [mm]:	97,9
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	50
  Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Standard:	ISO 16028
  Surface:	Mate 1000 (Zinc-Nickel)
  Temperature range [°C]:	-25°C to +100°C
