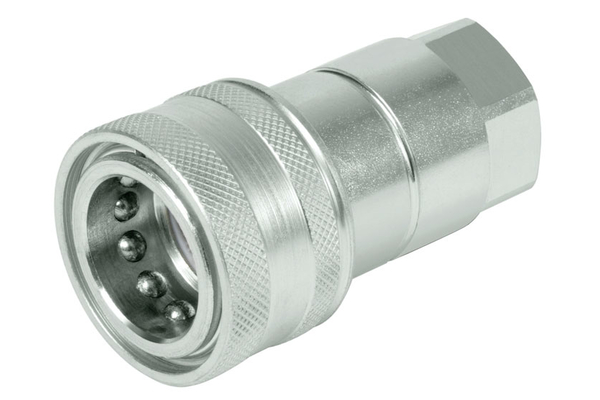

ST-ANV femal coupling (ISO 7241-1 A)

Similar image

Reference couplings for agricultural applications, but also used extensively in construction and industry. Sealing system with cone valve. Connection not permitted under pressure. Interchangeability according to ISO 7241-A standard.

To accessories

Detail

Art. No.
ST-NV08BSP12M
%
SALE
ST-NV08NPT12M
%
SALE
ST-ANV04BSP05M
%
SALE
ST-ANV06BSP06M
%
SALE
ST-ANV12BSP16M
%
SALE
ST-ANV16BSP20M
%
SALE
ST-ANV04NPT05M
%
SALE
ST-ANV06NPT06M
%
SALE
ST-ANV12NPT16M
%
SALE
ST-ANV16NPT20M
%
SALE
Size
3
3
1
2
4
6
1
2
4
6
DN
12
12
06
10
20
25
06
10
20
25
Size
08
08
04
06
12
16
04
06
12
16
Inch
1/2
1/2
1/4
3/8
3/4
1
1/4
3/8
3/4
1
Working pressure [bar]
300
250
350
300
250
250
350
300
250
250
Thread + standard
BSP female DIN 3852
NPT female thread DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
NPT female thread DIN 3852
NPT female thread DIN 3852
NPT female thread DIN 3852
NPT female thread DIN 3852
Thread [GA]
1/2
1/2
1/4
3/8
3/4
1
1/4
3/8
3/4
1
Outer Ø sleeve [mm]
38,5
38,0
26,0
31,5
48,0
56,0
26,0
30,0
45,0
52,0
Length sleeve [mm]
68,0
70,0
50,0
56,0
80,0
94,0
49,2
60,5
84,3
101,3
Wrench size connection side plug
27
SW [mm]
27
27
19
22
35
41
19
22
34
41
Wrench size connection side sleeve
19
22
35
41
19
22
34
41
burst pressure plug uncoupled [bar]
100
burst pressure coupled [bar]
120
burst pressure sleeve uncoupled [bar]
140
SW1 [mm]
27
27
19
22
35
41
19
22
34
41
l/min at ΔP=2 bar
50
45
8
28
100
180
12
23
106
189
Quantity


Product info

  • Technical data
    Form of the sealing valve: poppet
    Material: C-steel, nitrified
    Material support ring: PTFE

Accessories

dust protection
