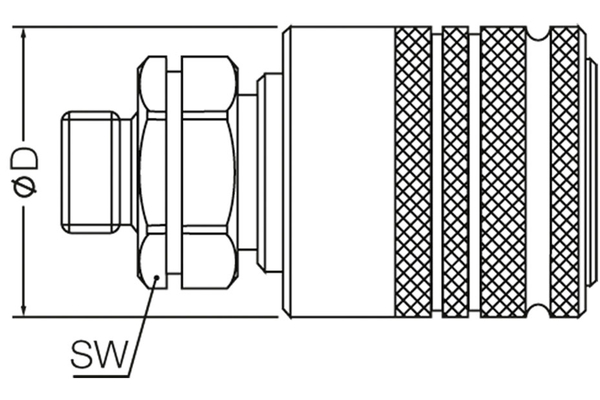

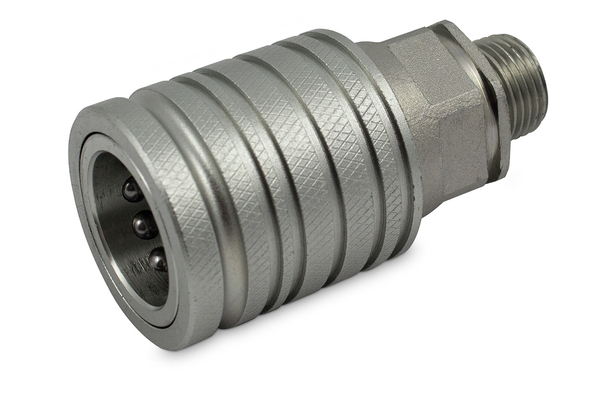

ST3 femal coupling

Similar image
Similar image

For general applications (eg. agricultural technology), push pull function, compatibility according to ISO 7241-1A

To accessories

Detail

Art. No.
ST3-PV2-14CEL08-12M
%
SALE
ST3-PV5-14CELS08-12M
%
SALE
ST3-PV0-16M10M
%
SALE
ST3-PV0-22M12M
%
SALE
ST3-PV0-08BSP12M
%
SALE
ST3-PV22M12M
%
SALE
ST3-PV06BSP12M
%
SALE
ST3-PV08BSP12M
%
SALE
ST3-PV1-06BSP12M
%
SALE
ST3-PV1-08BSP12M
%
SALE
ST3-PV2-16CEL10-10M
%
SALE
ST3-PV2-18CEL12-12M
%
SALE
ST3-PV2-26CEL18-12M
%
SALE
ST3-PV2-22CEL15-12M
%
SALE
ST3-PV3-20CES12-10M
%
SALE
ST3-PV3-22CES14-12M
%
SALE
ST3-PV3-24CES16-12M
%
SALE
ST3-PV5-16CELS10-10M
%
SALE
ST3-PV5-18CELS12-12M
%
SALE
ST3-PV5-22CELS15-12M
%
SALE
ST3-PV5-26CELS18-16M
%
SALE
ST3-PV6-20CESS12-10M
%
SALE
ST3-PV6-22CESS14-12M
%
SALE
ST3-PV6-24CESS16-12M
%
SALE
ST3-PV8-18CESS10-12M
%
SALE
Size
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
DN
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
Size
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
08
Inch
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
working pressure [bar]
250
250
300
300
300
300
300
300
300
300
300
300
250
300
300
300
300
300
300
300
300
300
300
300
300
Thread + standard
Metric male-thread ISO 8434-1-L
Metric bulkhead-thread ISO 8434-1-L
BSP female DIN 3852, with O-Ring Port
BSP female DIN 3852, with O-Ring Port
BSP female DIN 3852, with O-Ring Port
metric female thread DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP male DIN 3863 (60°)
BSP male DIN 3863 (60°)
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE external thread light series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
Thread [GA]
M14x1,5
M14x1,5
M16x1,5
M22x1,5
1/2
M22x1,5
3/8
1/2
3/8
1/2
M16x1,5
M18x1,5
M26x1,5
M22x1,5
M20x1,5
M22x1,5
M24x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M20x1,5
M22x1,5
M24x1,5
M18x1,5
Pipe Ø R [mm]
8L
8L
10L
12L
18L
15L
12S
14S
16S
10L
12L
15L
18L
12S
14S
16S
10S
Outer Ø sleeve [mm]
38,0
38,0
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
Length sleeve [mm]
69,0
85
74,0
72,0
66,0
66,3
66,0
66,0
73.5
76,0
73,5
73,5
71
75,5
73,5
68,0
73,0
85,0
87,0
89,0
86,0
86,0
83,0
88,0
86,0
Wrench size connection side plug
30
SW [mm]
30
30
30
30
27
27
27
27
30
30
27
27
30
27
30
30
30
30
27
30
30
30
30
30
27
burst pressure plug uncoupled [bar]
1000
SW2 [mm]
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
Ø D [mm]
38
burst pressure coupled [bar]
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
1100
GL [mm]
12
13
14
14
26
27
27
29
29
27
burst pressure sleeve uncoupled [bar]
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1000
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
SW1 [mm]
30
30
24
27
l/min at ΔP=2 bar
50
50
45
45
50
75
50
50
45
45
50
50
50
50
45
45
45
45
50
45
45
45
45
45
75
Quantity


Product info

  • Specifications
    Form of the sealing valve: poppet
    Material: steel gem. EN10277
    Material support ring: PTFE

Benefit

Interchangeable according to the ISO7241-1A standard.

Accessories

dust protection, dust protection caps, and oil-receiver set TARV (plus coloured clips)

Practical tip

Can be used as a breakaway coupling. Please refer to our coupling holder SD12ST3 to mount the coupling with the breakaway function.
