Valcon® VC-ISO-A male coupling

Similar image
Similar image

Reference couplings for agricultural applications, but also used extensively in construction and industry. Sealing system with cone valve. Connection not permitted under pressure. Interchangeability according to ISO 7241-A standard.

To accessories

Detail

Art. No.
VC-ISO-A-IG1/4-06S
%
SALE
VC-ISO-A-IG3/8-10S
%
SALE
VC-ISO-A-IG3/4-20S
%
SALE
VC-ISO-A-IG1/2-12S
%
SALE
VC-ISO-A-IG1-25S
%
SALE
DN
06
10
20
12
25
Size
04
06
12
08
16
Inch
1/4
3/8
3/4
1/2
1
Working pressure [bar]
500
300
250
300
250
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
Thread [GA]
1/4
3/8
3/4
1/2
1

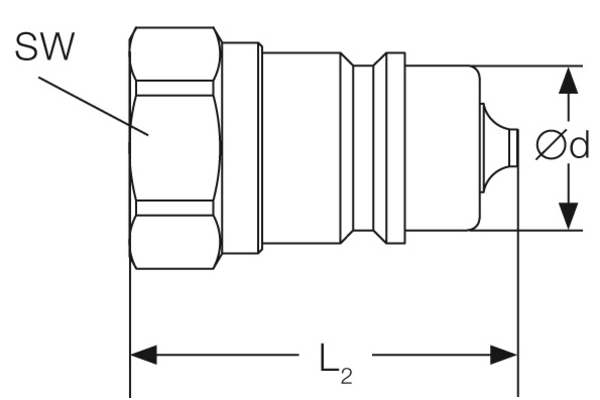

Outer Ø plug [mm]
11,9
17,3
29,0
20,6
34,3
Length plug [mm]
35,5
36,5
57,0
43,5
59,5
SW [mm]
19
22
35
27
41
SW1 [mm]
19
22
35
27
41
l/min at ΔP=2 bar
8
28
100
50
180
Quantity


Accessories

dust protection
