VC-ISO-B-IG3/4-20M
Valcon® Plug-in coupling series VC-ISO-B female

Product info

• Specifications

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	210
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/4

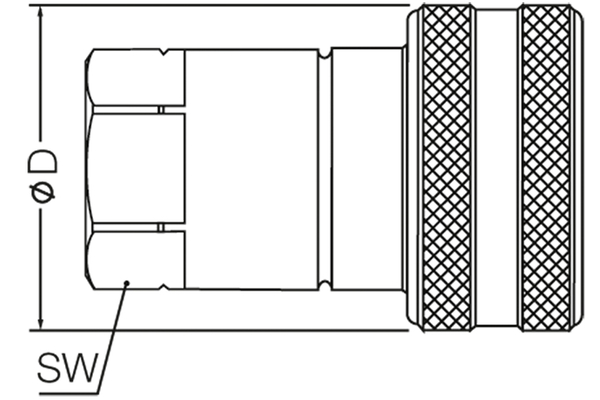

  Outer Ø sleeve [mm]:	54,0
  Length sleeve [mm]:	92,0
  SW [mm]:	36
  SW1 [mm]:	36
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Female
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	400
  Resistance against white rust [h]:	200
  Standard:	ISO 7241-1B
  Surface:	Chrome III
  Temperature range [°C]:	-20°C up to +120°C
