Product info
-
Technical data

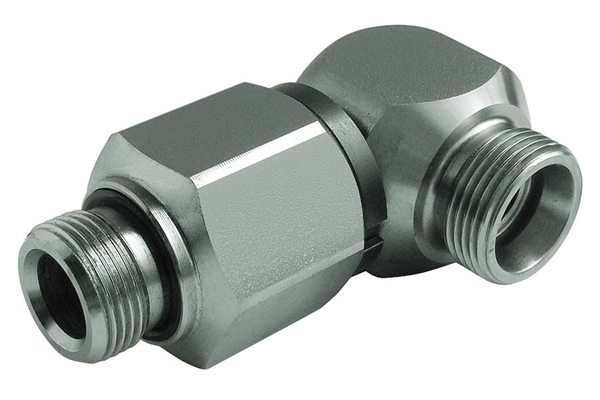

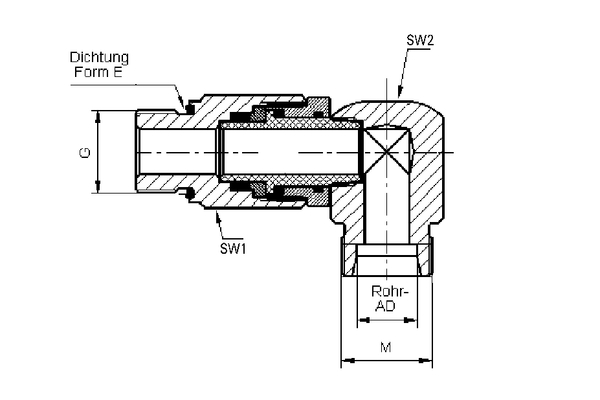

working pressure [bar]: mind. 10 - max. 350 Pipe Ø R [mm]: 25 Thread [G1]: M36x2 Thread [G2]: G 1" Series: S SW1 [mm]: 46 SW2 [mm]: 40 Connection type 1: Metric 24° Connection type 2: Imperial Construction form: Angle 90° Description: Rotary ball-guided angle screw-in fitting, imperial - soft-sealing Material: ST-l Surface: zinc plated, chrom 6-free Temperature range [°C]: -30°C to +95°C
