Art. No.: RV38D/W-SR/KÖ/ED
List number: 12794560

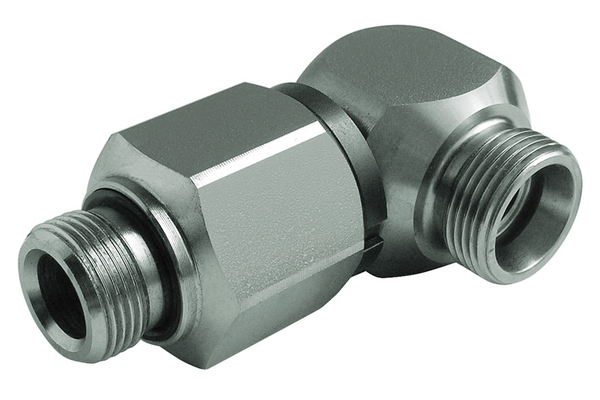

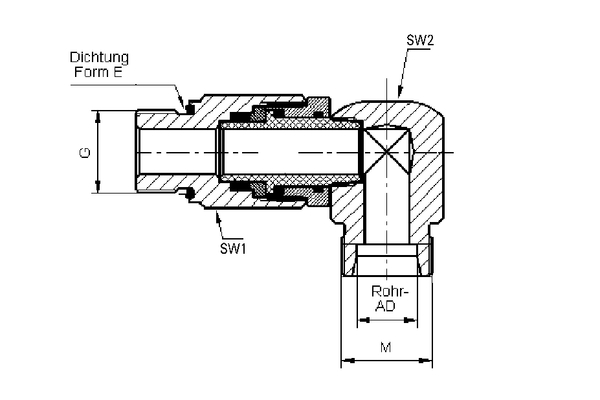

Angle screw-in union, rotating, only body, inch
| working pressure [bar]: | mind. 10 - max. 250 |
| Pipe Ø R [mm]: | 38 |
| Thread [G1]: | M52x2 |
| Thread [G2]: | G 1.1/2" |
| Series: | S |
| SW1 [mm]: | 60 |
| SW2 [mm]: | 60 |
| Connection type 1: | Metric 24° |
| Connection type 2: | Imperial |
| Construction form: | Angle 90° |
| Description: | Rotary ball-guided angle screw-in fitting, imperial - soft-sealing |
| Material: | ST-l |
| Surface: | zinc plated, chrom 6-free |
| Temperature range [°C]: | -30°C to +95°C |
Reserve technical changes.
