RV06WE45/O-LM

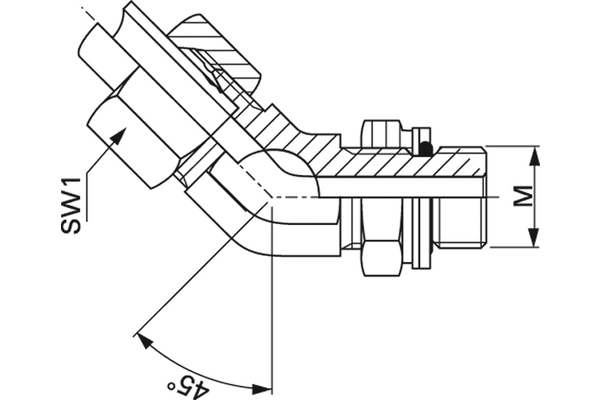

Adjustable elbow unionWE 45/0 (metric)

Product info

• Technical data

  Working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	6
  Thread [G1]:	M12x1,5
  Thread [G2]:	M10x1
  Series:	L
  O-Ring 1:	8,1x1,6
  SW1 [mm]:	14
  SW2 [mm]:	14
  SW3 [mm]:	14
  Connection type 1:	Metric 24°
  Connection type 2:	Metric
  Construction form:	Angle 45°
  Description:	Adjustable angle fitting 45 °, metric with O-ring and locknut
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
