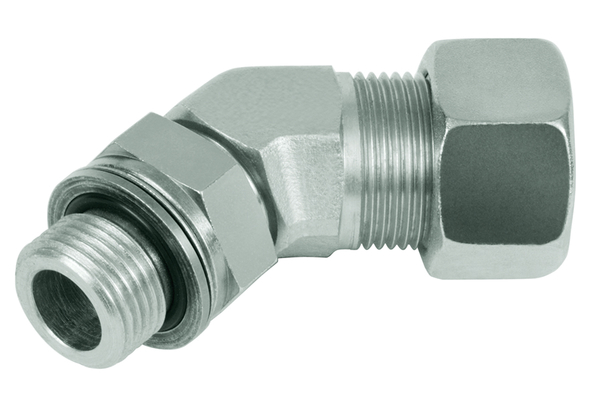

RV25WE45/O-SR
Adjustable elbow union WE 45/0 (inch)

Product info

• Specifications

  working pressure [bar]:	250
  burst pressure [bar]:	1000
  Pipe Ø R [mm]:	25
  Thread [G1]:	M36x2
  Thread [G2]:	G 1"
  Series:	S
  O-Ring 1:	29,74x3,53
  SW1 [mm]:	41
  SW2 [mm]:	46
  SW3 [mm]:	41
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	Angle 45°
  Description:	Adjustable angle fitting 45 °, with O-ring and locknut
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
