RV06DSVW-LR

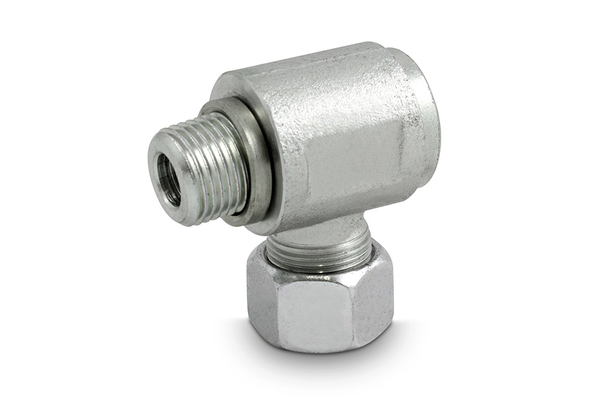

Swivel screw-fitting DSVW (inch)

Product info

• Specifications

  working pressure [bar]:	250
  burst pressure [bar]:	1000
  Pipe Ø R [mm]:	6
  Thread [G1]:	M12x1,5
  Thread [G2]:	G 1/8"
  Series:	L

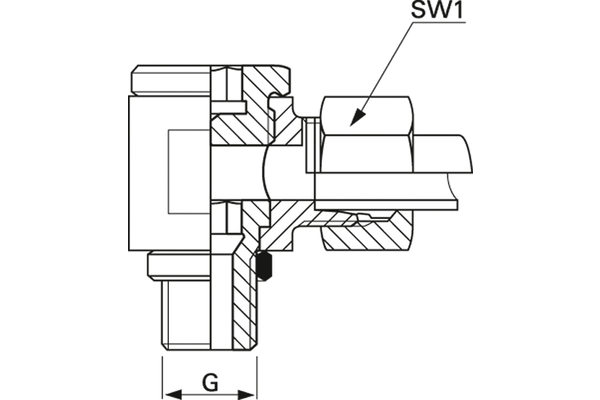

  SW1 [mm]:	19
  SW2 [mm]:	6
  SW3 [mm]:	14
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	Angle 90°
  Description:	Thrustless angular swivel screw connection
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
