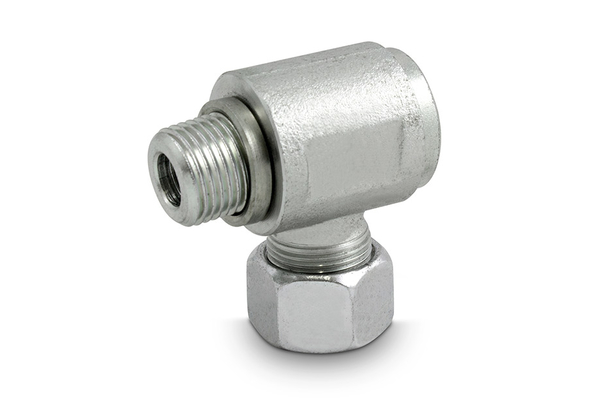

RV15DSVW-LR
Swivel screw-fitting DSVW (inch)

Product info

• Specifications

  working pressure [bar]:	250
  burst pressure [bar]:	1000
  Pipe Ø R [mm]:	15
  Thread [G1]:	M22x1,5
  Thread [G2]:	G 1/2"
  Series:	L
  SW1 [mm]:	32
  SW2 [mm]:	12
  SW3 [mm]:	27
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	Angle 90°
  Description:	Thrustless angular swivel screw connection
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
