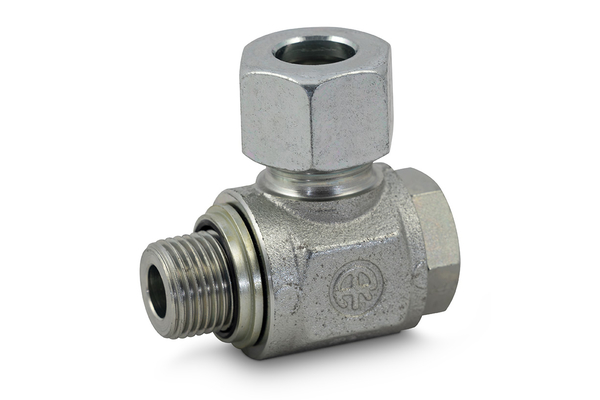

Banjo angle union WHO (metric)

Similar image
Similar image

High pressure angle screw-fitting, metric

To accessories

Detail

Art. No.
RV06WHO-LM
%
SALE
RV08WHO-LM
%
SALE
RV10WHO-LM
%
SALE
RV12WHO-LM
%
SALE
RV15WHO-LM
%
SALE
RV18WHO-LM
%
SALE
RV22WHO-LM
%
SALE
RV28WHO-LM
%
SALE
RV35WHO-LM
%
SALE
RV42WHO-LM
%
SALE
RV06WHO-SM
%
SALE
RV08WHO-SM
%
SALE
RV10WHO-SM
%
SALE
RV12WHO-SM
%
SALE
RV14WHO-SM
%
SALE
RV16WHO-SM
%
SALE
RV20WHO-SM
%
SALE
RV25WHO-SM
%
SALE
RV30WHO-SM
%
SALE
RV38WHO-SM
%
SALE
working pressure [bar]
315
315
315
315
315
315
160
160
160
160
400
400
400
400
400
400
400
250
250
250
burst pressure [bar]
1260
1260
1260
1260
1260
1260
640
640
640
640
1600
1600
1600
1600
1600
1600
1600
1000
1000
1000
Pipe Ø R [mm]
6
8
10
12
15
18
22
28
35
42
6
8
10
12
14
16
20
25
30
38
Thread [G1]
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M30x2
M36x2
M45x2
M52x2
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M22x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Thread [G2]
M10x1
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M33x2
M42x2
M48x2
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M22x1,5
M27x2
M33x2
M42x2
M48x2
Series
L
L
L
L
L
L
L
L
L
L
S
S
S
S
S
S
S
S
S
S

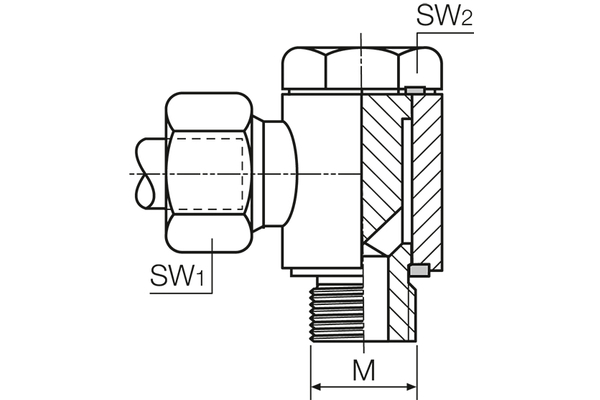

SW1 [mm]
19
22
22
30
32
36
41
50
60
70
22
22
30
30
36
36
41
50
60
70
SW2 [mm]
17
19
19
24
24
27
32
41
50
55
19
19
24
24
27
27
32
41
50
55
SW3 [mm]
14
17
19
22
27
32
36
41
50
60
17
19
22
24
27
30
36
46
50
60
Quantity


Product info

  • Specifications
    Connection type 1: Metric 24°
    Connection type 2: Metric
    Construction form: Angle 90°
    Description: High pressure angle swivel fitting
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free

Benefit

Suitable for higher pressure applications.

Accessories

Also as throttlefree swivel union DSVW available.

Practical tip

Also available as a non-throttling angle screw connection DSVW.
