DKOR 90° (HAI)

Similar image
Similar image

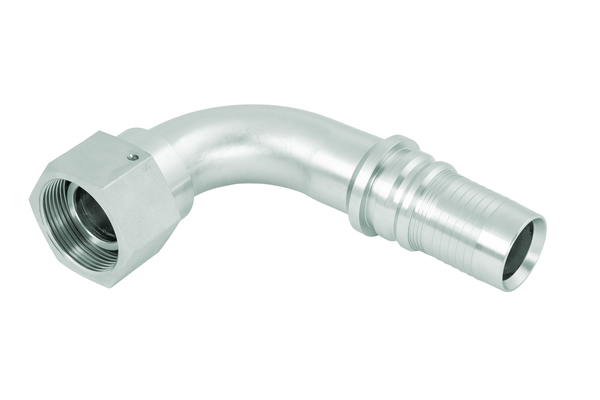

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

To accessories

Detail

Art. No.
HAI12BOF90S12
%
SALE
HAI16BOF90S16
%
SALE
HAI20BOF90S20
%
SALE
HAI24BOF90S24
%
SALE
HAI32BOF90S32
%
SALE
DN
19
25
31
38
51
Thread + standard
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
Connection thread A
3/4-14
G 1"
1.1/4-11
1.1/2-11
G2"-11
X [mm]
58,0
75,0
79,0
93,0
130,0
H [mm]
58,0
71,0
83,0
96,0
130,0
SW1 [mm]
32
38
50
55
70
Quantity


Product info

  • Technical data
    Connection name Indunorm: BOF 90°
    Connection type: DKOR 90°
    Construction form: 90°
    Material: Free cutting steel, O-Ring: NBR
    Type of fittings: Multispiral series HAI 90°
