Art. No.: HAI12BOF90S12
List number: 03060320

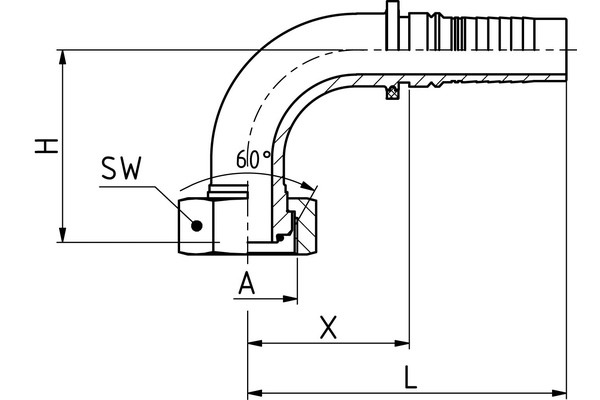

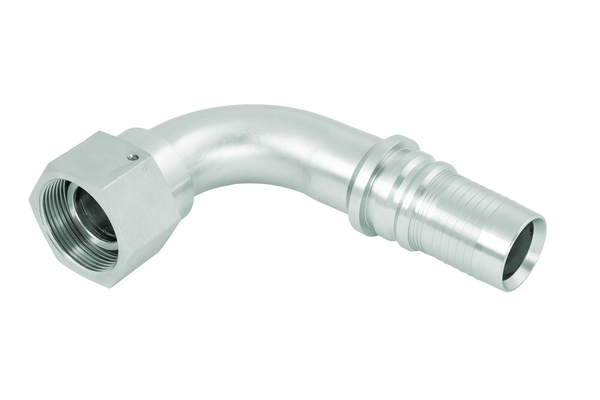

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
| DN: | 19 |
| Thread + standard: | BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread |
| Connection thread A: | 3/4-14 |
| X [mm]: | 58,0 |
| H [mm]: | 58,0 |
| SW1 [mm]: | 32 |
| Connection name Indunorm: | BOF 90° |
| Connection type: | DKOR 90° |
| Construction form: | 90° |
| Material: | Free cutting steel, O-Ring: NBR |
| Type of fittings: | Multispiral series HAI 90° |
Reserve technical changes.
