VC04B45S04
Valcon® swage fitting DKR 45° BF 45°

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread

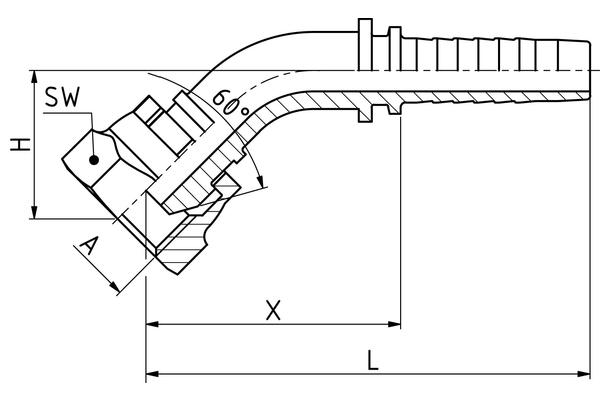

  H [mm]:	16,0
  d [mm]:	4,0
  T:	1/4-19
  E [mm]:	19
  C [mm]:	40,0
  L [mm]:	65,0
  Connection name Indunorm:	BF 45°
  Connection type:	DKR 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
