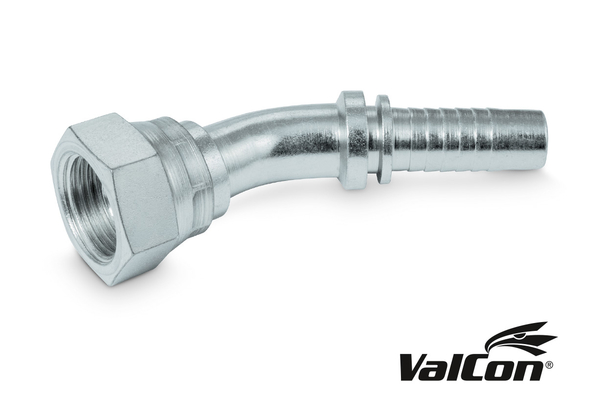

ValCon® DKR 45°

Similar image
Similar image

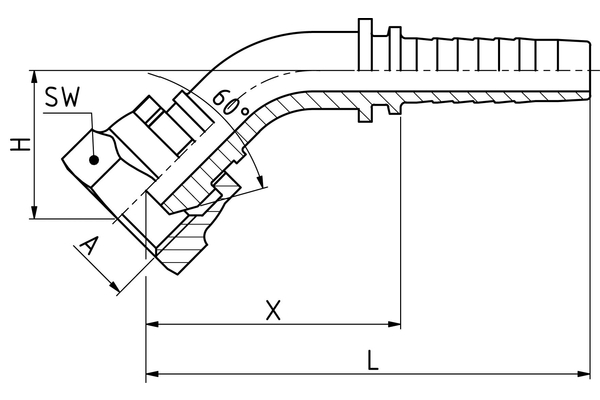

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail

Art. No.
VC04B45S04
%
SALE
VC06B45S05
%
SALE
VC06B45S06
%
SALE
VC08B45S08
%
SALE
VC10B45S10
%
SALE
VC12B45S12
%
SALE
VC06B45S04
%
SALE
VC08B45S06
%
SALE
VC12B45S10
%
SALE
VC16B45S12
%
SALE
VC16B45S16
%
SALE
DN
6
8
10
12
16
19
6
10
16
19
25
Size
04
05
06
08
10
12
04
06
10
12
16
Inch
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1/4"
3/8"
5/8"
3/4"
1"
Thread + standard
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
H [mm]
16,0
21,0
19,0
23,0
27,0
28,0
20,0
22,0
26,0
31,5
35,0
d [mm]
4,0
5,5
7,0
9,5
12,0
15,0
4,0
7,0
12,0
15,0
20,0
T
1/4-19
3/8-19
3/8-19
1/2-14
5/8-14
3/4-14
3/8-19
1/2-14
3/4-14
1-11
1-11
E [mm]
19
22
22
27
30
32
22
27
32
38
38
C [mm]
40,0
52,0
48,0
50,0
59,0
70,0
43,0
41,0
64,0
69,5
84,0
L [mm]
65,0
80,5
76,0
81,5
93,5
119,5
68,0
70,5
98,5
110,5
137,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BF 45°
    Connection type: DKR 45°
    Construction form: 45°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
