VC16B45S16
Valcon® swage fitting DKR 45° BF 45°

Product info

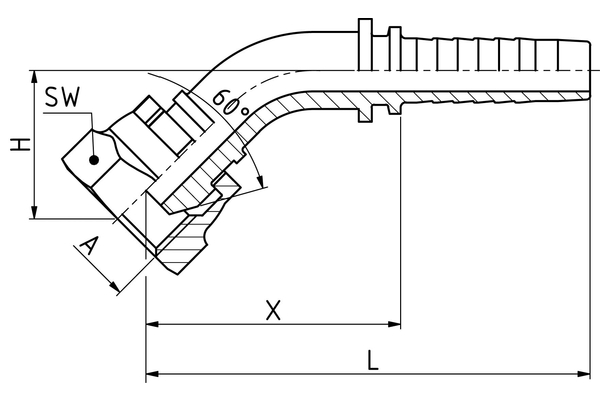

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  H [mm]:	35,0
  d [mm]:	20,0
  T:	1-11
  E [mm]:	38
  C [mm]:	84,0
  L [mm]:	137,5
  Connection name Indunorm:	BF 45°
  Connection type:	DKR 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
