VC10B45S10

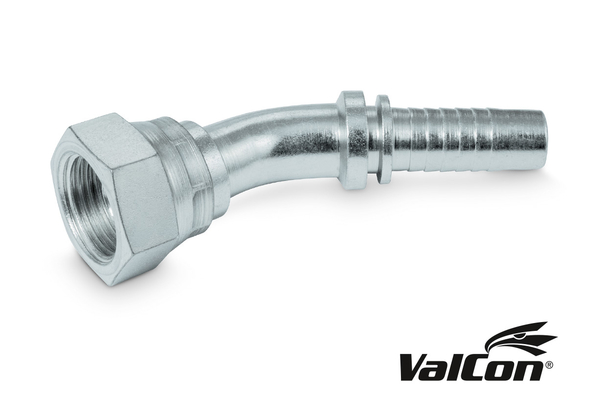

Valcon® swage fitting DKR 45° BF 45°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread

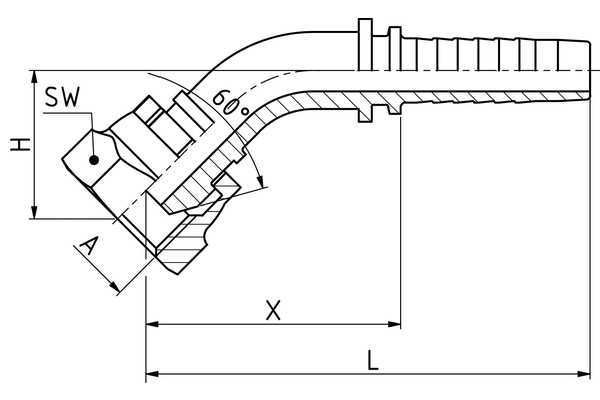

  H [mm]:	27,0
  d [mm]:	12,0
  T:	5/8-14
  E [mm]:	30
  C [mm]:	59,0
  L [mm]:	93,5
  Connection name Indunorm:	BF 45°
  Connection type:	DKR 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
