VC06B45S05
Valcon® swage fitting DKR 45° BF 45°

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread

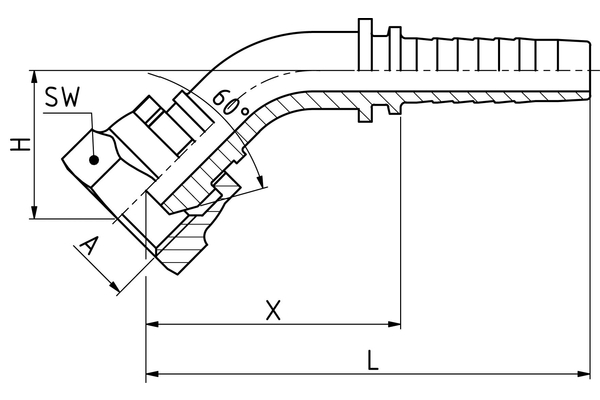

  H [mm]:	21,0
  d [mm]:	5,5
  T:	3/8-19
  E [mm]:	22
  C [mm]:	52,0
  L [mm]:	80,5
  Connection name Indunorm:	BF 45°
  Connection type:	DKR 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
