VC12B45S10
Valcon® swage fitting DKR 45° BF 45°

Product info

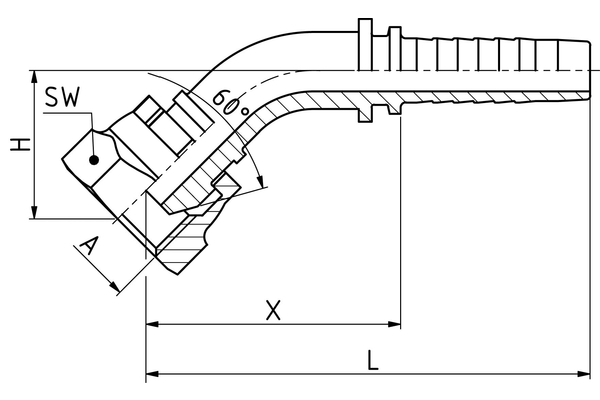

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  H [mm]:	26,0
  d [mm]:	12,0
  T:	3/4-14
  E [mm]:	32
  C [mm]:	64,0
  L [mm]:	98,5
  Connection name Indunorm:	BF 45°
  Connection type:	DKR 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
