ValCon® DKJ

Similar image
Similar image

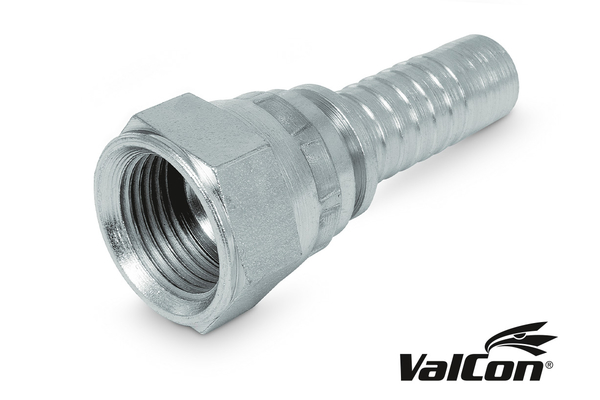

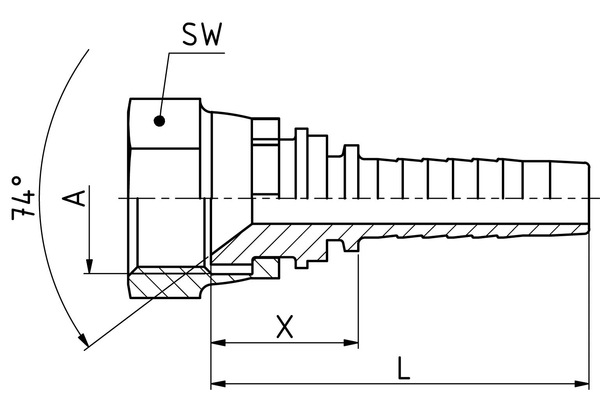

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

To accessories

Detail

Art. No.
VC07JF04
%
SALE
VC08JF05
%
SALE
VC09JF06
%
SALE
VC12JF08
%
SALE
VC14JF10
%
SALE
VC17JF10
%
SALE
VC19JF12
%
SALE
VC21JF16
%
SALE
VC08JF04
%
SALE
VC09JF04
%
SALE
VC09JF05
%
SALE
VC12JF06
%
SALE
VC14JF08
%
SALE
VC17JF08
%
SALE
VC17JF12
%
SALE
VC21JF12
%
SALE
DN
6
8
10
12
16
16
19
25
6
6
8
10
12
12
19
19
Size
04
05
06
08
10
10
12
16
04
04
05
06
08
08
12
12
Inch
1/4"
5/16"
3/8"
1/2"
5/8"
5/8"
3/4"
1"
1/4"
1/4"
5/16"
3/8"
1/2"
1/2"
3/4"
3/4"
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
L1 [mm]
40,0
42,5
45,5
48,5
53,5
56,0
64,5
75,5
40,0
41,0
43,5
45,5
50,5
53,0
69,5
70,5
d [mm]
4,0
5,5
7,0
9,5
12,0
12,0
15,0
20,0
4,0
4,0
5,5
7,0
9,5
9,5
15,0
15,0
T
7/16-20
1/2-20
9/16-18
3/4-16
7/8-14
1.1/16-12
1.3/16-12
1.5/16-12
1/2-20
9/16-18
9/16-18
3/4-16
7/8-14
1.1/16-12
1.1/16-12
1.5/16-12
E [mm]
15
17
19
24
27
32
36
38
17
19
19
24
27
32
32
38
C [mm]
13,0
15,0
16,0
17,0
19,0
22,0
24,5
22,0
15,0
16,0
16,0
16,0
19,0
21,0
20,0
21,0
L [mm]
40,0
42,5
45,5
48,5
53,5
56,0
65,5
75,5
40,0
41,0
43,5
45,5
50,5
53,0
69,5
70,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF
    Connection type: DKJ
    Construction form: 0°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
