VC21JF16

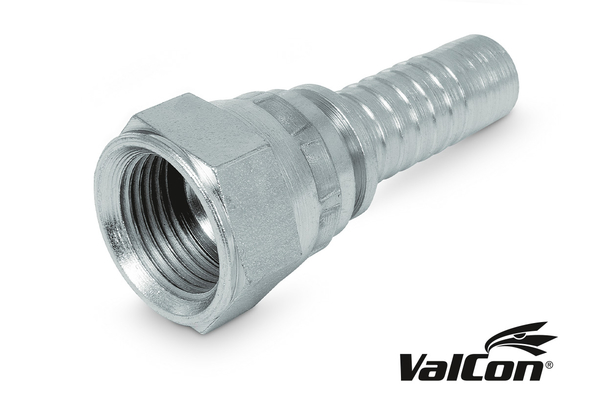

Valcon® swage fitting DKJ JF

Product info

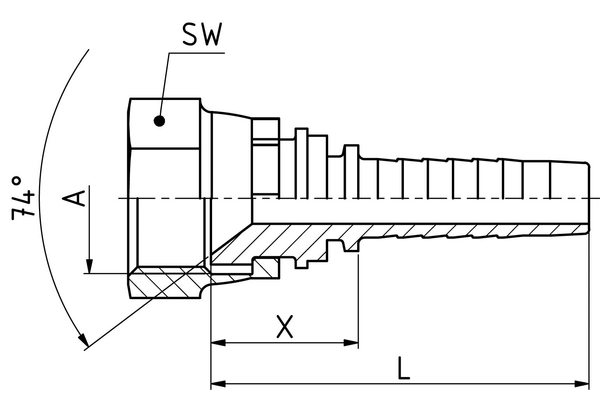

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  L1 [mm]:	75,5
  d [mm]:	20,0
  T:	1.5/16-12
  E [mm]:	38
  C [mm]:	22,0
  L [mm]:	75,5
  Connection name Indunorm:	JF
  Connection type:	DKJ
  Construction form:	0°
  Material:	Free cutting steel
  Type of fittings:	VC
